Water Monitors

CARBON STEEL, 63 mm WATERWAY, ISI MARKED

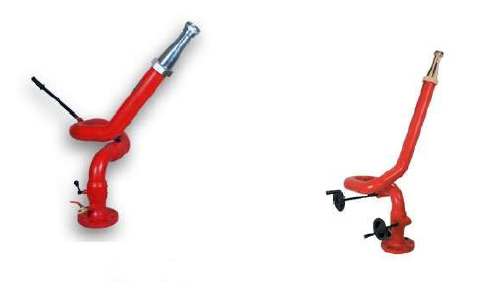

Stand post monitors are used in fire fighting for applying large quantity of water/foam from a distance onto the risk area.
The monitors are normally installed onto stand posts, fitted onto the fire water network, or mounted on trailers/trolleys.
Manual swivel joints allow operators to adjust the position of the monitor (or leave it unattended, if required).

Brief Description
Stand Post type monitor, ISI Marked (IS:8442), nominal waterway size 63mm, flow capacity 1750 lpm at 7 kg/cm2 inlet pressure. Monitor shall be constructed of M.S. pipes/ bends, Gunmetal Swivel Joints (manual), have suitable inlet flange and solid jet nozzle of specified capacity. Monitor shall give minimum throw as specified in IS:8442.

Material	Carbon Steel	Carbon Steel	Carbon Steel
Maximum Operating Pressure	12Bar (175psi)	12Bar (175psi)	12Bar (175psi)
Flow Rate	1750 LPM @ 7 Bar	2580 LPM @ 7 Bar	3750 LPM @ 7 Bar
Throw Range	55 Meters	55 Meters	55 Meters
Inlet Flange	100 NB (4") Raised Flange ANSI B 16.5150#	00 NB (4") Raised Flange ANSI B 16.5150#	150 NB (6") Raised Flange ANSI B 16.5150#
Monitor Outlet	75 NB (3') water way. Jet Nozzle Optional: Jet - Spray Nozzle	75 NB (3') water way. Jet Nozzle Optional: Jet – Spray Nozzle	100 NB (4") water way. Jet Nozzle Optional: Jet – Spray Nozzle
Monitor Movement	Vertical Movement - Manual Swivel Operation with Lock Horizontal Movement - Manual Swivel Operation With Lock	Vertical Movement - Manual Swivel Operation with Lock Horizontal Movement - Manual Swivel Operation With Lock	Vertical Movement - Manual Swivel Operation with Lock Horizontal Movement - Manual Swivel Operation With Lock
Hydrostatic Test Pressure	23 Bar	23 Bar	23 Bar
Monitor Rotation	360° continuous	360° continuous	360° continuous
Monitor Elevation	+90° above horizontal -45° below horizontal	+90° above horizontal -45° below horizontal	+90° above horizontal -45° below horizontal
Finish	Red Poiyurethane	Red Poiyurethane	Red Poiyurethane
