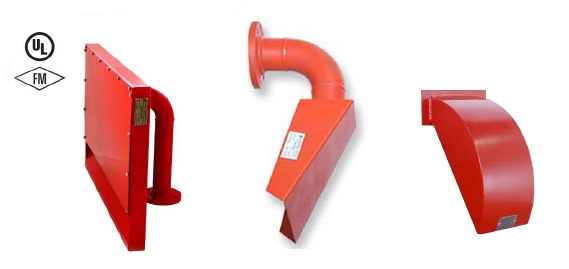

Foam Pourer
We, RAJYOG FIRE SERVICES PVT. LTD supply excellent quality of Foam Pourers. Foam Pourer is a discharge device outlet designed to apply expanded foam gently onto the surface of flammable or combustible liquid.
Technical Specifications :
Materials Standard Specification Options
Body and foam generator tube ==Carbon steel to EN10025
Air/liquid flow controller ==Stainless Steel SS316
High performance bursting disc== Impregnated Graphite
Reusable bursting disc holder== Zinc plated steel ,Stainless Steel SS316
Bursting disc “O” ring seal== Nitrile rubber (for Hydrocarbons) Viton (for Polar Solvents)
Captive foam enhancer ==Stainless Steel SS316
Fixings (nuts, bolts, washers)== Stainless Steel 304, A2 Stainless Steel SS316
Flange gaskets (3) ==Neoprene rubber PTFE
External finish=== Yellow thermoplastic powder
coated - 250/450 microns
|
