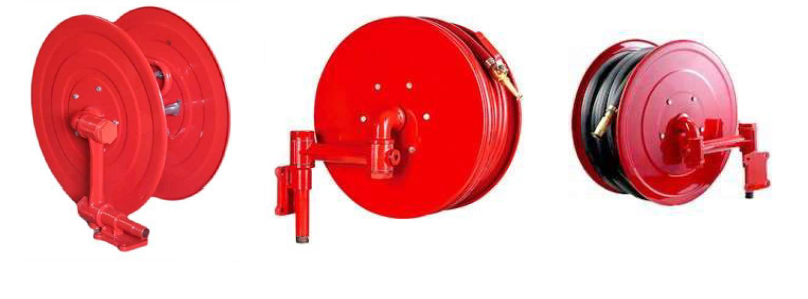

Hose Reels With Drum

Hose Reels are first aid fire fighting equipment, meant for use by untrained/semi-trained personnel at the incipient stages of the fire. Hose Reels are strategically located at various locations, and fed by pressurized supply of water. A rubber/ PVC hose of 1” or ¾” dia. (of 30/ 36 metres length) is wound on the revolving drum, and connected to a discharge nozzle.

Make :R AJYOG FIRE SERVICES (P)LTD.
Size/ Model Hose Reel (Swinging type)
Inlet 1” MBSP Threaded connection
Outlet Hose fitted with Jet type shut-off nozzle (Jet/Spray type optional)
Material of Construction Mild Steel
Reference IS:884
MATERIAL OF CONSTRUCTION
Hub Mild Steel IS:513
Side rim Mild Steel IS:513
Swivel joint Gunmetal IS:318 LTB2
Hose Reel tubing Rubber/PVC (braided)
Shut off nozzle :PVC
TESTING AND QUALITY CONTROL
Performance Requirements
Flow: min. 24 lpm @ 7 kgf/cm2
Range: 6 mtrs (min)
OPERATIONAL/ TECHNICAL DATA
Working pressure 2.5 to 7 Kgf/cm2
Weight (Approx.) ---
FINISH
Hose Reel Painted - Fire Red Color as per IS: 5 Shade No. 536
Nozzle Natural finish/ Polished
