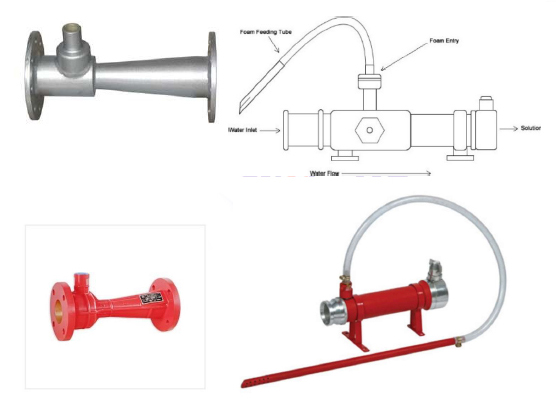

Inline Inductor


The function of INLINE INDUCTOR is to suck the foam concentrate in the suitable proportion. We, RAJYOG FIRE SERVICES PVT. LTD have specially designed our INLINE INDUCTOR so that it can withstand high pressure allowing the foam concentrate to travel a long distance from foam applicator to injection point.

Inductor is designed for a pre-determined water pressure to give the correct proportioning at that pressure and discharge rate. The increase or decrease of the inlet pressure will result in an increase or decrease in the flow rate, which in turn will change the proportioning.Inline Inductor

Technical Specifications:
• OPERATING PRESSURE : 6.5 - 12 Bar (93 - 175 PSI)
• INDUCTION : 3% or 6%
• MAXIMUM BACK PRESSURE : 65%of the inlet pressure
• NOMINAL SIZE : 65, 80, 100 & 150 NB
• FINISH : Red RAL 3000 or natural

Inline Inductor
